Automated Building Systems has been controlling the HVAC and Lighting at SHU since 2001.

Alerton’s Compass Supervisor provides an intuitive, scalable user experience. Compass delivers customizable navigation, visual system cues, quick access to data, user security, advanced scheduling, alarm management and graphical representation of single or multiple buildings’ systems. These features enable building operators and facility engineers to quickly identify and resolve system issues, while improving efficiencies and reduce budgets through an advanced scheduling interface.

Compass 2

Alerton’s Compass Supervisor provides an intuitive, scalable user experience. Compass delivers customizable navigation, visual system cues, quick access to data, user security, advanced scheduling, alarm management and graphical representation of single or multiple buildings’ systems. These features enable building operators and facility engineers to quickly identify and resolve system issues, while improving efficiencies and reduce budgets through an advanced scheduling interface.

The backbone of Alerton’s BACtalk™ Ascent product line, the Ascent Control Module (ACM) is the industry’s most agile BACnet Building Controller (B-BC) in its class. It combines Alerton’s pioneering and proven BACnet® capability with Tridium’s® Niagara Framework® flexibility.

ACM Global Controller

The backbone of Alerton’s BACtalk™ Ascent product line, the Ascent Control Module (ACM) is the industry’s most agile BACnet Building Controller (B-BC) in its class. It combines Alerton’s pioneering and proven BACnet® capability with Tridium’s® Niagara Framework® flexibility.

The Alerton® VisualLogic® Expansion Input/Output Modules (VXIO) are designed to expand the I/O capacity of Alerton® VisualLogic® IP Controllers (VIP). The VIP controller is a BACnet Advanced Application Controller (B-AAC) with a real-time clock, high resolution 16-bit universal inputs and outputs, and a 32-bit processor. The VIP-363-HOA model is designed to support up to eight VXIO modules providing the I/O expansion for applications such as central plant systems, air handling units, clean rooms, fume hoods, large terminal units, and similar control and process equipment.

VXIO-965-HOA

The Alerton® VisualLogic® Expansion Input/Output Modules (VXIO) are designed to expand the I/O capacity of Alerton® VisualLogic® IP Controllers (VIP). The VIP controller is a BACnet Advanced Application Controller (B-AAC) with a real-time clock, high resolution 16-bit universal inputs and outputs, and a 32-bit processor. The VIP-363-HOA model is designed to support up to eight VXIO modules providing the I/O expansion for applications such as central plant systems, air handling units, clean rooms, fume hoods, large terminal units, and similar control and process equipment.

The Alerton® BACtalk® VLCA-1688 is a BACnet advanced application controller (B-AAC) with a real-time clock, high resolution 12-bit A/D; D/A converter and a 32-bit processor. The VLCA-1688 includes on-board Hand-Off-Auto (HOA) switches, Ethernet connectivity, and complex math functions. It also leverages DDC Function blocks that calculate additional DDC analog functions.

VLCA-1688

The Alerton® BACtalk® VLCA-1688 is a BACnet advanced application controller (B-AAC) with a real-time clock, high resolution 12-bit A/D; D/A converter and a 32-bit processor. The VLCA-1688 includes on-board Hand-Off-Auto (HOA) switches, Ethernet connectivity, and complex math functions. It also leverages DDC Function blocks that calculate additional DDC analog functions.

The Alerton® VisualLogic® VLC-1188-E is a versatile, BACnet-compliant, fully programmable field controller designed for central plant systems, air handling units, clean rooms, fume hoods, large terminal units, and similar control and process equipment. As a native BACnet controller, it integrates seamlessly with your BACnet system, communicating at up to 115 Kbps on a BACnet MS/TP LAN.

VLC-1188-E

The Alerton® VisualLogic® VLC-1188-E is a versatile, BACnet-compliant, fully programmable field controller designed for central plant systems, air handling units, clean rooms, fume hoods, large terminal units, and similar control and process equipment. As a native BACnet controller, it integrates seamlessly with your BACnet system, communicating at up to 115 Kbps on a BACnet MS/TP LAN.

The Alerton® VisualLogic® VAV-SD2A-E is a versatile, BACnet- compliant field controller that provides pressure-independent control of any single-duct variable air volume (VAV) box. It is particularly suited for controlling VAV series fan boxes equipped with a variable speed fan. As a native BACnet controller, the VAV-SD2A-E integrates seamlessly with your BACnet system, communicating at up to 115.2 Kbps on a BACnet MS/TP LAN.

VAV-SD2A-E

The Alerton® VisualLogic® VAV-SD2A-E is a versatile, BACnet- compliant field controller that provides pressure-independent control of any single-duct variable air volume (VAV) box. It is particularly suited for controlling VAV series fan boxes equipped with a variable speed fan. As a native BACnet controller, the VAV-SD2A-E integrates seamlessly with your BACnet system, communicating at up to 115.2 Kbps on a BACnet MS/TP LAN.

FCU

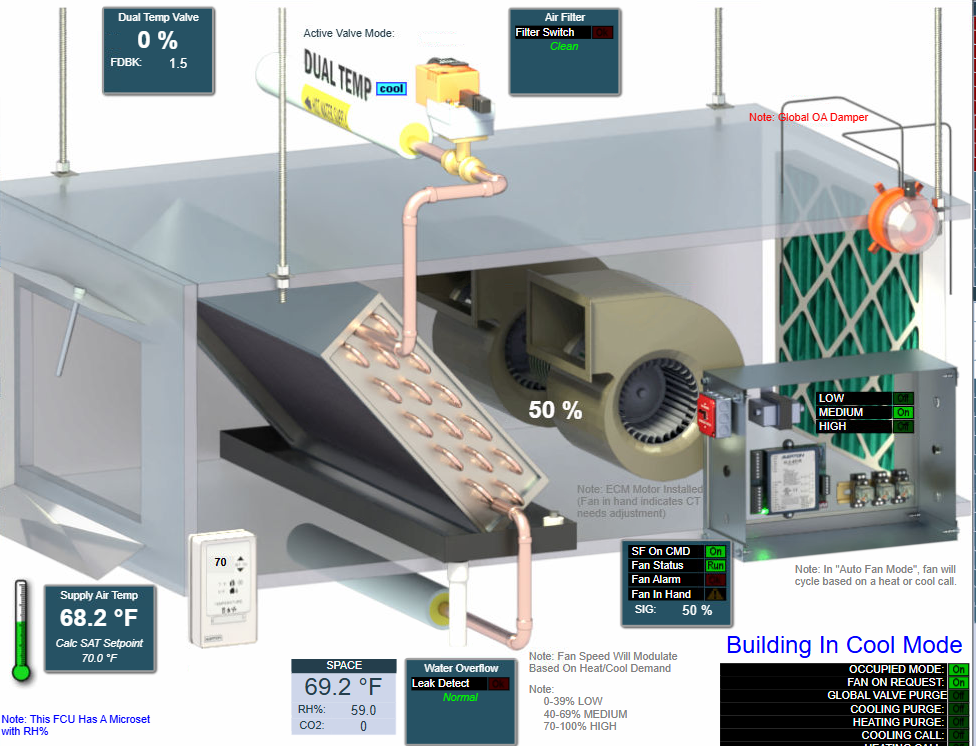

Dual Temp Fan Coil Unit with ECM Motor, Discharge Air Temp, Fan Status and Dirty Air Filter Alarm.

Boiler Plant

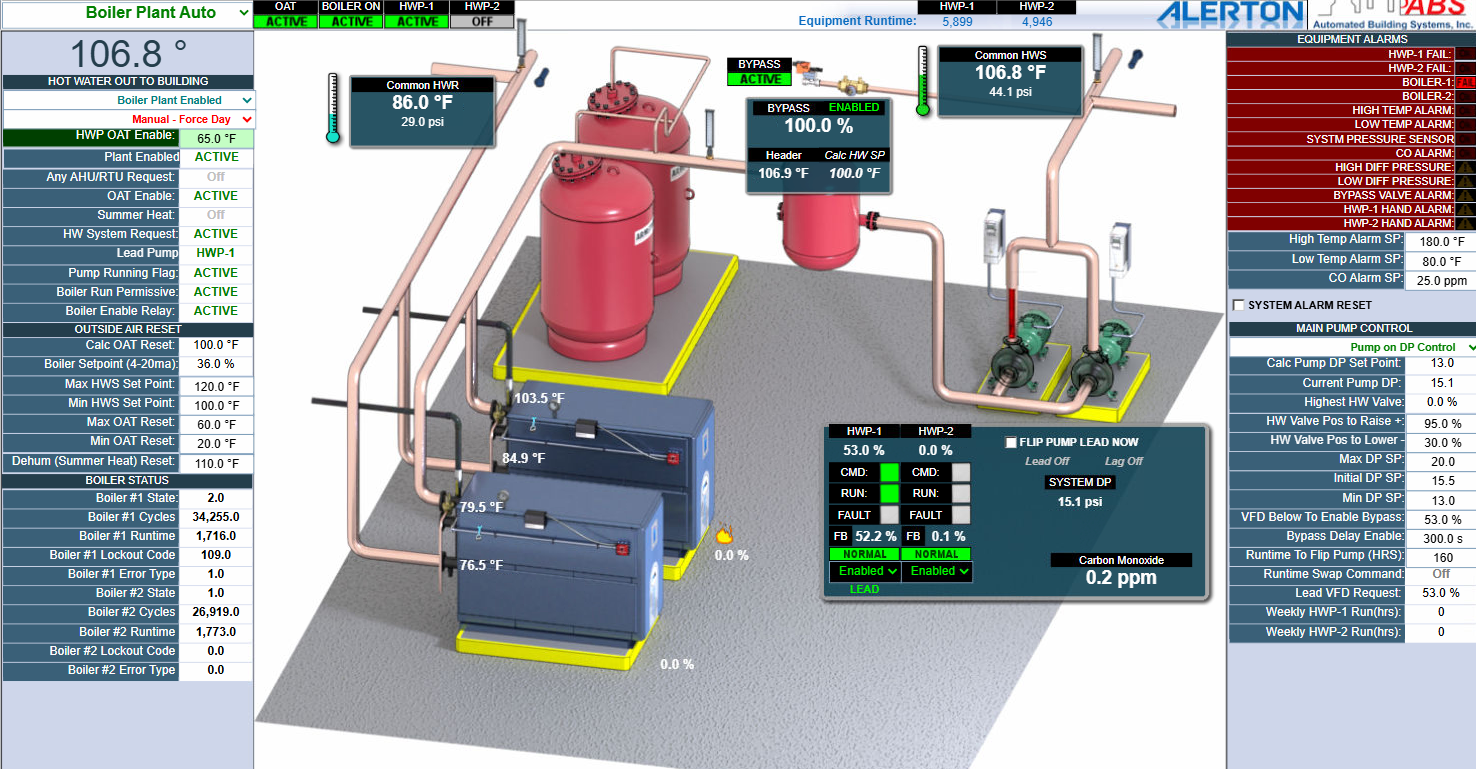

Gas fired commercial boiler control with BACnet Interface. Hot water supply reset control based on outdoor air temp. Supply & Return temps trending. Secondary hot water pump VFD control based on differential pressure. Pump status indication and Alarms.

VAV RTU Zone System

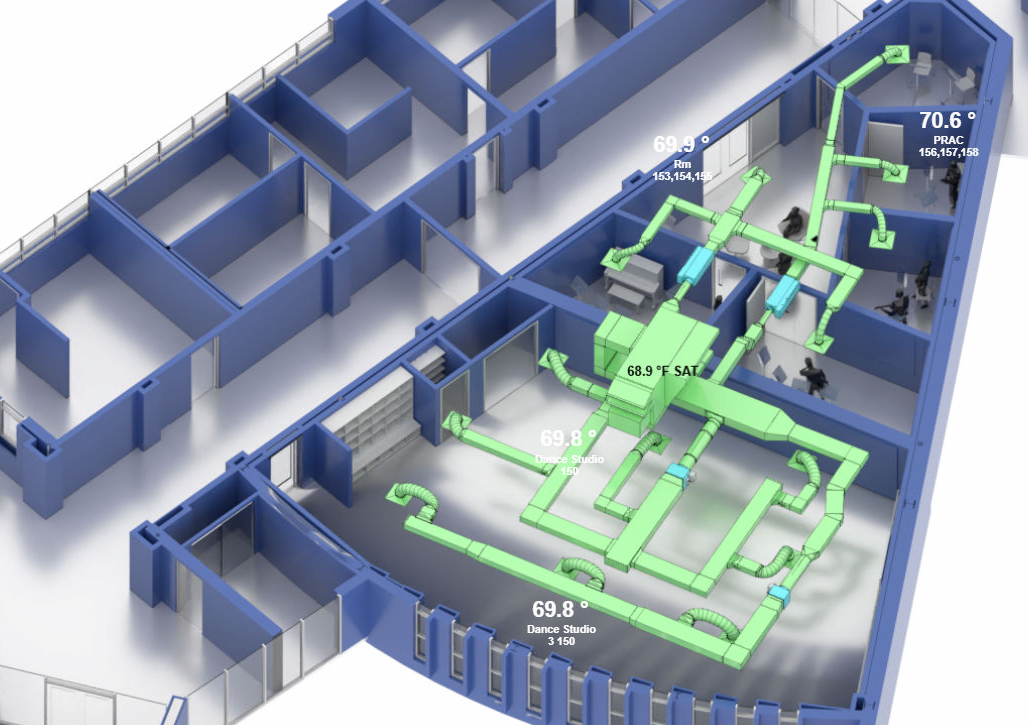

Custom Floorplans with Temperature overlays.

Air Cooled Chiller Plant

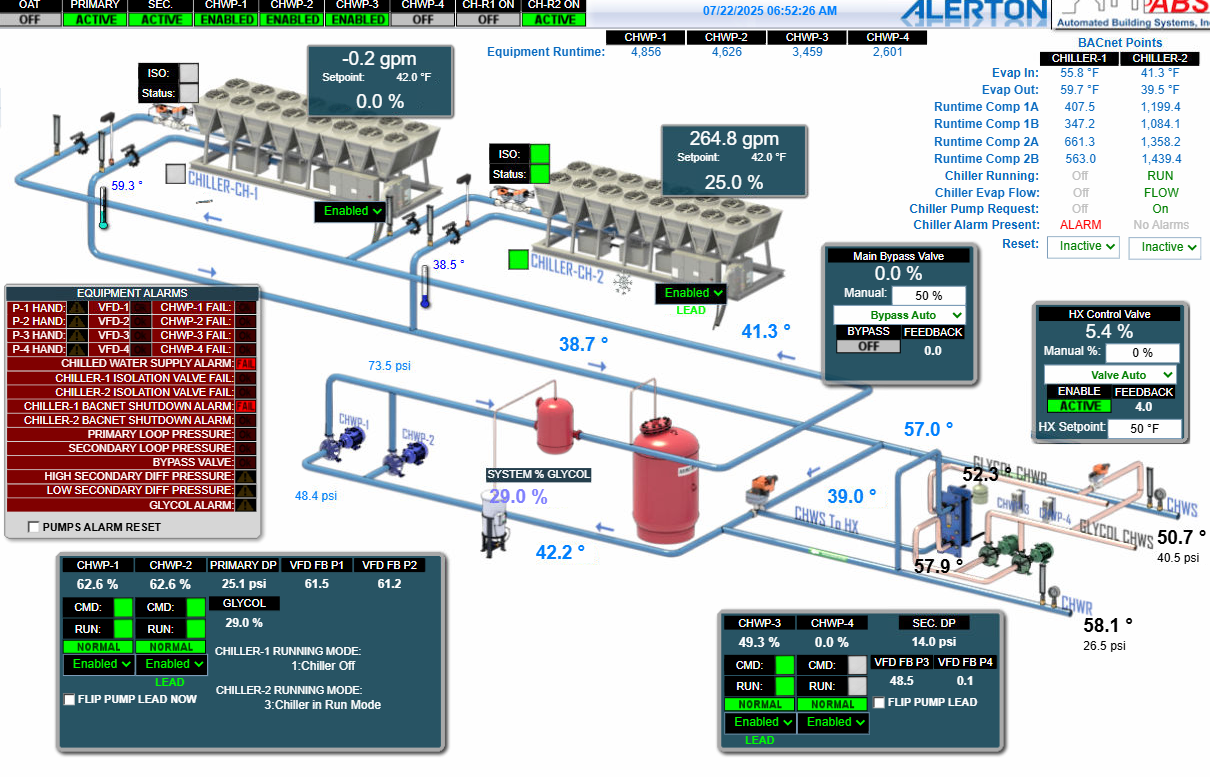

BACnet chiller interface with primary and secondary pump VFD control. Glycol monitoring and heat exchangers. Bypass valve control with differential pressure. Loop temp control using a 3-way valve. Runtime monitoring and full trending on all available points.
